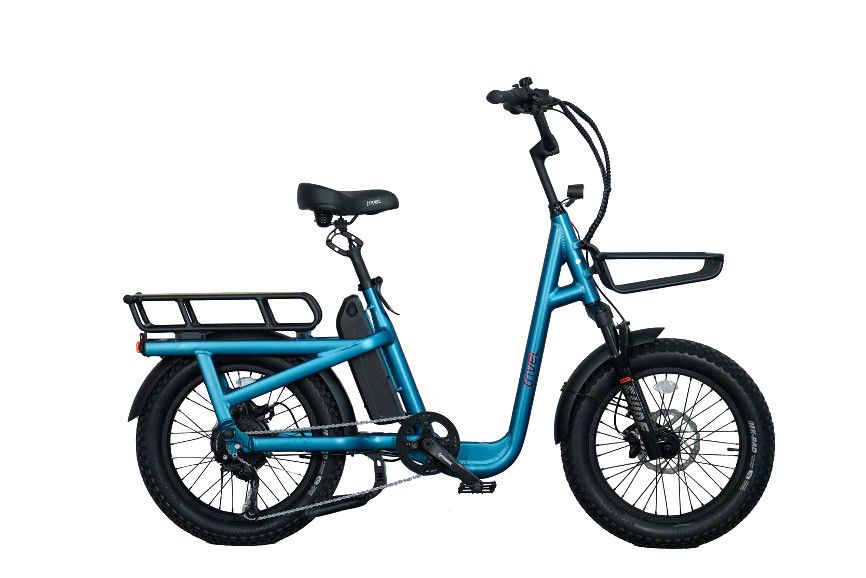

TRIVEL COMBI CT Cargo

Combi CT 14Ah – Blue

Compact, powerful and versatile electric bike

The Combi CT 14Ah is a versatile electric bike designed to deliver comfort, stability and power for everyday riding. Its compact 20-inch wheel format, low step-through frame and high load capacity make it especially practical for urban transportation and carrying cargo.

It is powered by a Bafang H720 rear hub motor rated at 500 W, delivering up to 85 Nm of torque. Combined with the Bafang torque sensor, the motor provides smooth and responsive assistance based on the rider’s pedaling effort.

The system offers 5 levels of pedal assist plus throttle. Its 48 V, 14 Ah, 672 Wh lithium-ion battery provides a maximum advertised range of up to 72 km / 45 miles, while the assisted top speed reaches 32 km/h / 20 mph.

The Bafang DP E181.CAN display provides easy access to the main electric system and riding information.

Comfort and stability

The Combi CT is equipped with an RST Guide TNL suspension fork offering 80 mm of travel, preload adjustment and lockout.

Its wide Kenda Krad 20 x 3.3-inch tires provide stability, comfort and traction on urban surfaces. They also feature K-Shield puncture protection.

The 670 mm BMX-style handlebar offers stable and predictable handling. The Trivel aluminum quill stem provides up to 100 mm of height adjustment, helping accommodate riders of different sizes.

A Velo comfort saddle and ergonomic lock-on grips complete the cockpit.

Shimano 9-speed drivetrain

The Shimano 9-speed drivetrain provides a useful range of gears for urban riding, hills and carrying additional weight.

Drivetrain: 9 speed
Shifter: Shimano 9-speed
Rear derailleur: Shimano Sora 9-speed, short cage
Cassette: Shimano 11-32 T
Chainring: 38 T with dual chainguard
Cranks: Aluminum, 165 mm, JIS
Chain: KMC 9-speed with EcoProteQ rust protection
Bottom bracket: Bafang torque sensor BB
Pedals: Alloy with sealed bearings

4-piston hydraulic brakes

The Combi CT is equipped with powerful Tektro HD-E3940 4-piston hydraulic disc brakes.

The 180 mm x 2.3 mm cargo-rated rotors provide strong and controlled braking performance, especially when the bike is carrying extra weight.

Electric system

Motor: Bafang H720 rear hub motor
Power: 500 W
Torque: 85 Nm
Assist: 5 levels of pedal assist + throttle
Maximum speed: 32 km/h / 20 mph
Battery: 48 V, 14 Ah, 672 Wh lithium-ion
Maximum advertised range: up to 72 km / 45 miles
Display: Bafang DP E181.CAN
Sensor: Bafang bottom bracket torque sensor

Fork and tires

Fork: RST Guide TNL
Travel: 80 mm
Adjustments: Preload and lockout
Tires: Kenda Krad
Size: 20 x 3.3 in
Puncture protection: K-Shield

Cockpit and comfort

Handlebar: BMX style, 670 mm wide
Stem: Trivel aluminum quill stem, 100 mm height adjustment
Headset: Threaded 1 1/8 in with sealed bearings
Grips: Ergonomic lock-on
Saddle: Velo Comfort
Pedals: Alloy with sealed bearings

Dimensions and capacity

Overall length: 173 cm
Overall width: 71 cm / 28 in
Handlebar height: Adjustable from 111 to 121 cm
Step-through height: 28 cm / 11.2 in
Recommended rider height: 150 to 193 cm / 4'11" to 6'4"
Maximum weight capacity: 400 lb / 181 kg

Lighting and included accessories

Lighting: Automatic light function and brake light

Included accessories:

• Rear rack
• Fenders
• Two-legged kickstand
• Bottle cage
