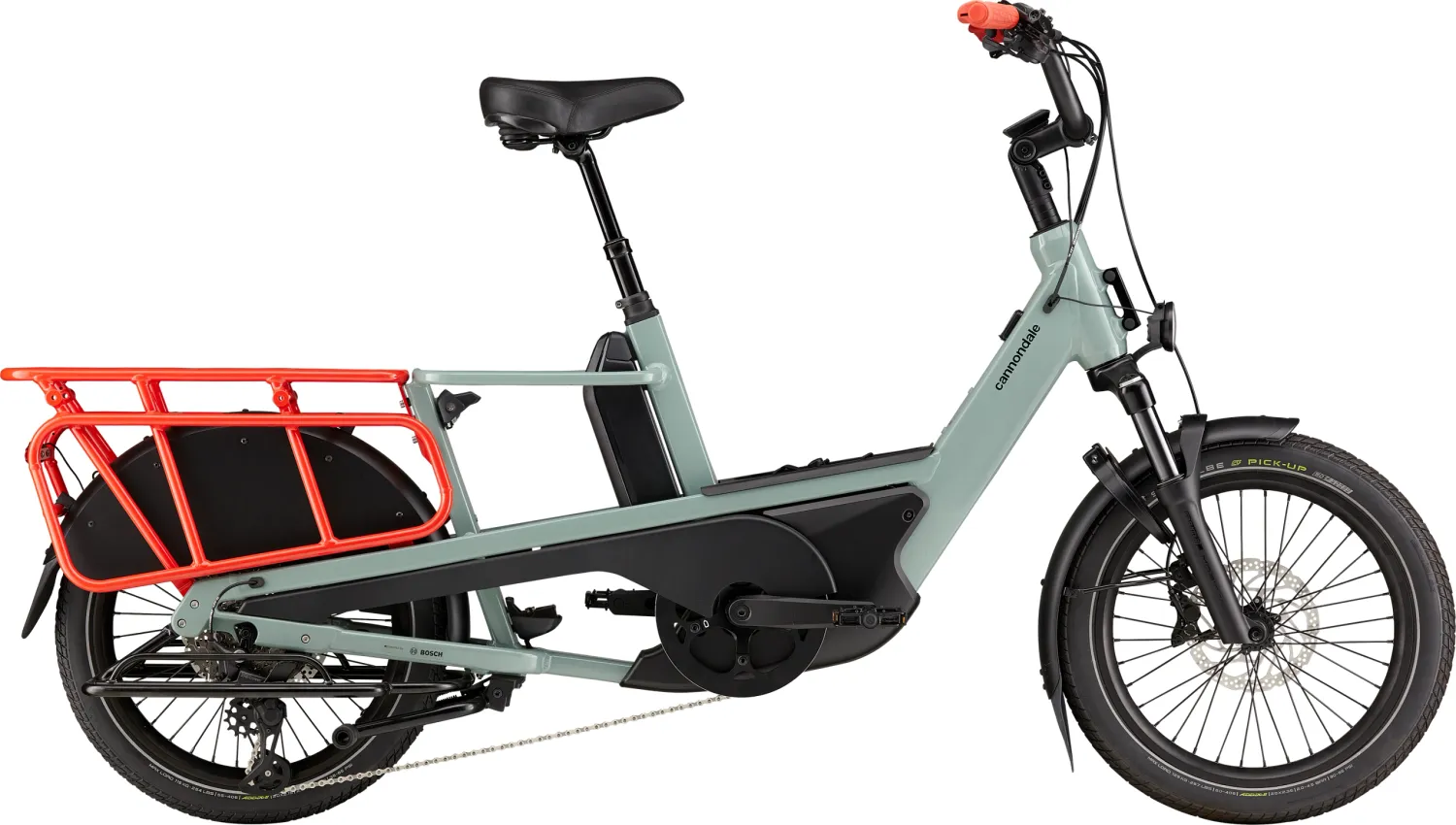

CANNONDALE CARGOWAGEN NEO

MODEL

Cargowagen Neo C67503U

FRAME

SmartForm C2 Alloy step-thru frame, integrated rear cargo rack (80kg), integrated headtube rack mounts, dual battery ready, internal cable routing, disc brake, tapered headtube, center console storage

FORK

Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel

HEADSET

Acros Blocklock w/ steering stop, semi-integrated

E-SYSTEM

Drive Unit: Bosch Cargo Line, 32 km/h

BATTERY

Bosch PowerPack, 545Wh

CHARGER

Bosch 4A

DISPLAY

Bosch Kiox 300 w/LED remote

PEDAL

Bracket

Rear Derailleur: Shimano Deore 5130, 10-speed

CONTROLLERS

Shimano Deore, 10-speed

CHAIN

KMC EGlide

CRANKSET

Samox, 52T

CASSETTE

Shimano CUES CS-LG300, 11-41, 10-speed

BRAKES

CALIPER: Tektro HD-T5040and

Discs: 4-piston Hydraulic Disc,

ROTOR: 203/180mm

LEVER: Tektro HD-T5040 hydraulic disc

WHEELS

Rim: Heavy Duty, Alloy, double wall, 36 hole, 35mm internal width, disc-specificSpokes: DT Swiss Champion, 13gTire size: 20X2.35Wheel size: 20 InchHubs:

Front: Formula, cartridge sealed bearings, 15x110mm, centerlock

Rear: Formula, cartridge sealed bearings, 12x148mm, centerlockTires: Schwalbe Pick-Up, (F) 20x2.6" (65-406), (R) 20x2.15" (55-406)

COMPONENTS

Handlebar: Cannondale Cruise Control Hi-Rise, 6061 Alloy, 31.8mm, 15° back, 740mmStem: Alloy, Adjustable angle, 31.8Grips: Cannondale Ergo Lock-onSaddle: Cannondale ComfortSeatpost: TranzX Suspension dropper post, 31.6, 70mm drop

EXTRA

Cannondale heavy-duty center stand, fenders, high visibility LED headlight, Lezyne Super Bright rear light, running boards, Abus ring lock, Schwalbe Air Plus high retention inner tubes---------
